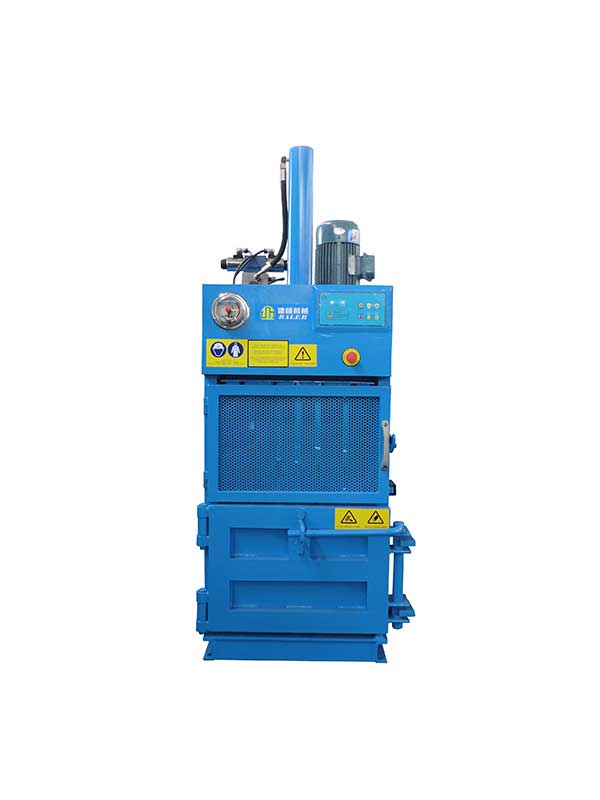

VBE-10 Vertical Hydraulic Baler
Features
- Pressing plate is adopted with guide slot type balance to prevent the incline.
- Safe and convenient linked type automatic bale ejection.
- The screen will indicate the status to ensure monitoring the running conditions effectively.
- Automatic control model and interlock switch.
- Preset pressure and anti-overload protection.
- Smart control and self-check program.
- Separate emergency stop switch ensures stopping the machine at any time as necessary.
- Safe and effective quick-lock and quick-release devices
- High strength frame designed to ensure the durability of the machine.
Technical Parameters
| Model |
VBE-10 |
| Nominal Force |
100KN |
| Bale Size |
600*400*400MM |
| Feeding Door Size |
600*350MM |
| Motor Power |
2.2 KW |
| Bale Weight |
40-60KG |
| Tying Mode |
Manual |
| Size(L*W*H) |
900*700*2100MM |
| Weight |
700kg |

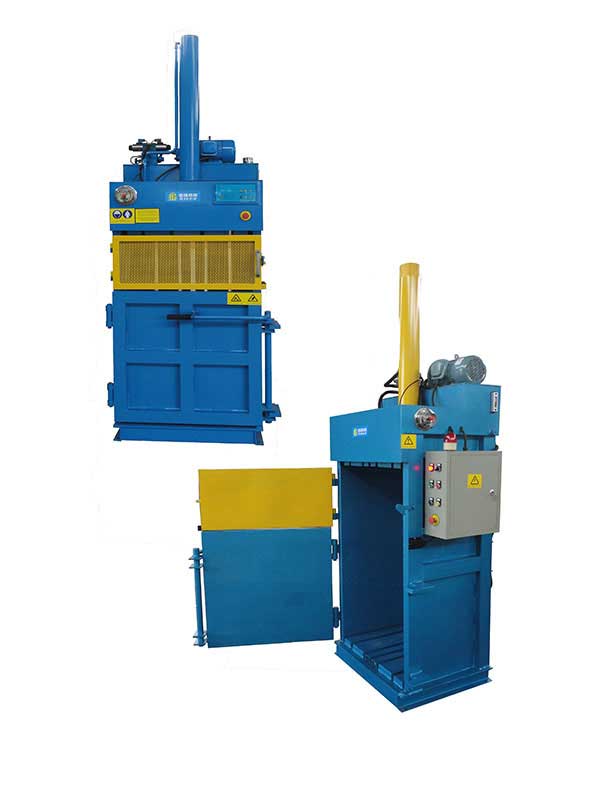

VBE-20 Vertical Hydraulic Baler
Features
- Pressing plate is adopted with guide slot type balance to prevent the incline.
- Safe and convenient linked type automatic bale ejection.
- The screen will indicate the status to ensure monitoring the running conditions effectively.
- Automatic control model and interlock switch.
- Preset pressure and anti-overload protection.
- Smart control and self-check program.
- Separate emergency stop switch ensures stopping the machine at any time as necessary.
- Safe and effective quick-lock and quick-release devices
- High strength frame designed to ensure the durability of the machine.
Technical Parameters
| Model |
VBE-20 |
| Nominal Force |
200KN |
| Bale Size |
800*600*300~800MM |
| Feeding Door Size |
800*500MM |
| Motor Power |
4 KW |
| Bale Weight |
80-120KG |
| Tying Mode |
Manual |
| Size(L*W*H) |
1100*850*2850MM |
| Weight |
900kg |
VBE-30 Vertical Hydraulic Baler
Features
- Pressing plate is adopted with U type balance to prevent the incline
- Safe and convenient linked type automatic bale ejection.
- Automatic open up and down moving feeding door
- Automatic control model and interlock switch.
- The screen will indicate the status to ensure monitoring the running conditions effectively.
- Preset pressure and anti-overload protection.
- Adopt smart control and self-check program.
- Separate emergency stop switch ensures to stop the machine at any time as necessary.
- Safe and effective lock and loose devices
- High strength frame designed to ensure the durability of the machine.
Technical Parameters
| Model |
VBE-30 |
| Nominal Force |
300KN |
| Bale Size |
1100*700*500~1000MM |
| Feeding Door Size |
1100*550MM |
| Motor Power |
5.5 KW |
| Bale Weight |
150-200KG |
| Tying Mode |
Manual |
| Size(L*W*H) |
1500*1000*3150MM |
| Weight |
1500kg |

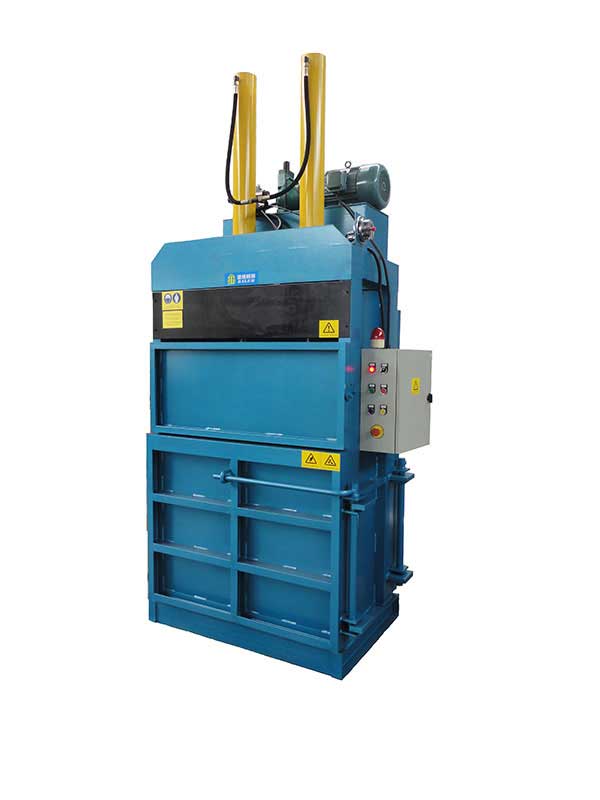

VBE-40 Vertical Hydraulic Baler
Features
- Pressing plate is adopted with U type balance to prevent the incline
- Safe and convenient linked type automatic bale ejection.
- Automatic open up and down moving feeding door
- Automatic control model and interlock switch.
- The screen will indicate the status to ensure monitoring the running conditions effectively.
- Preset pressure and anti-overload protection.
- Adopt smart control and self-check program.
- Separate emergency stop switch ensures to stop the machine at any time as necessary.
- Safe and effective lock and loose devices
- High strength frame designed to ensure the durability of the machine.
Technical Parameters
| Model |
VBE-40 |
| Nominal Force |
400KN |
| Bale Size |
1100*700*500~1000MM |
| Feeding Door Size |
1100*550MM |
| Motor Power |
7.5 KW |
| Bale Weight |
200-260KG |
| Tying Mode |
Manual |
| Size(L*W*H) |
1500*1000*3150MM |
| Weight |
1600kg |

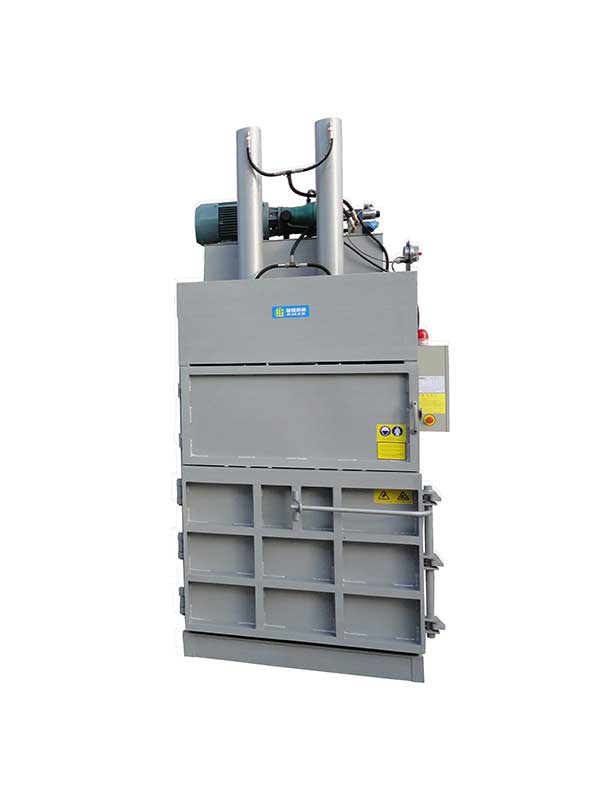

VBE-50 Vertical Hydraulic Baler
Features
- Pressing plate is adopted with U type balance to prevent the incline
- Safe and convenient linked type automatic bale ejection.
- Automatic open up and down moving feeding door
- Automatic control model and interlock switch.
- The screen will indicate the status to ensure monitoring the running conditions effectively.
- Preset pressure and anti-overload protection.
- Adopt smart control and self-check program.
- Separate emergency stop switch ensures to stop the machine at any time as necessary.
- Safe and effective lock and loose devices
- High strength frame designed to ensure the durability of the machine.
Technical Parameters
| Model |
VBE-50 |
| Nominal Force |
500KN |
| Bale Size |
1100*750*500~1000MM |
| Feeding Door Size |
1100*550MM |
| Motor Power |
11 KW |
| Bale Weight |
250-320KG |
| Tying Mode |
Manual |
| Size(L*W*H) |
1600*1200*3180MM |
| Weight |
2000kg |
VBE-60 Vertical Hydraulic Baler
Features
- Pressing plate is adopted with U type balance to prevent the incline
- Safe and convenient linked type automatic bale ejection.
- Automatic open up and down moving feeding door
- Automatic control model and interlock switch.
- The screen will indicate the status to ensure monitoring the running conditions effectively.
- Preset pressure and anti-overload protection.
- Adopt smart control and self-check program.
- Separate emergency stop switch ensures to stop the machine at any time as necessary.
- Safe and effective lock and loose devices
- High strength frame designed to ensure the durability of the machine.
Technical Parameters
| Model |
VBE-60 |
| Nominal Force |
600KN |
| Bale Size |
1200*800*500~1000MM |
| Feeding Door Size |
1200*550MM |
| Motor Power |
15 KW |
| Bale Weight |
300-380KG |
| Tying Mode |
Manual |
| Size(L*W*H) |
1700*1200*3250MM |
| Weight |
2800kg |
