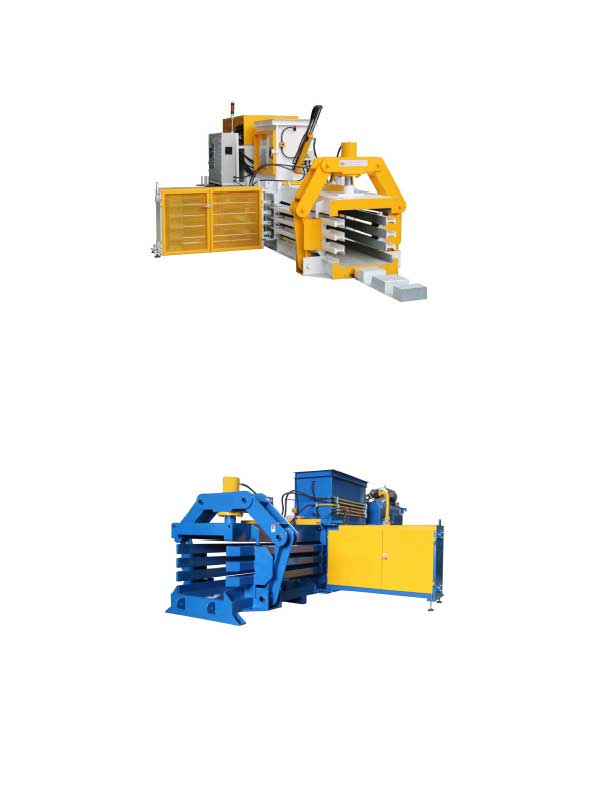

HBA40 Horizontal Hydraulic Baler
Features
- The screen will indicate the status to ensure monitoring the running conditions effectively.
- Automatic control model and interlock switch.
- Preset pressure and anti-overload protection.
- Smart control and self-check program.
- Separate emergency stop switch ensures stopping the machine at any time as necessary.
- Safe and effective quick-lock and quick-release devices
- High strength frame designed to ensure the durability of the machine.
- Separated cutting knives design to ensure stable working condition and long useage life.
Technical Parameters
| Model |
HBA-40 |
| Nominal Force |
400KN |
| Bale Size |
720*720*500-1500MM |
| Feeding Door Size |
1500*640MM |
| Motor Power |
22 KW |
| Capacity |
1-3 tons /hour |
| Tying Mode |
Automatic |
| Tying Wire |
4 * 3 mm wires |
| Size(L*W*H) |
8750*3050*3580MM |
| Weight |
7000kg |

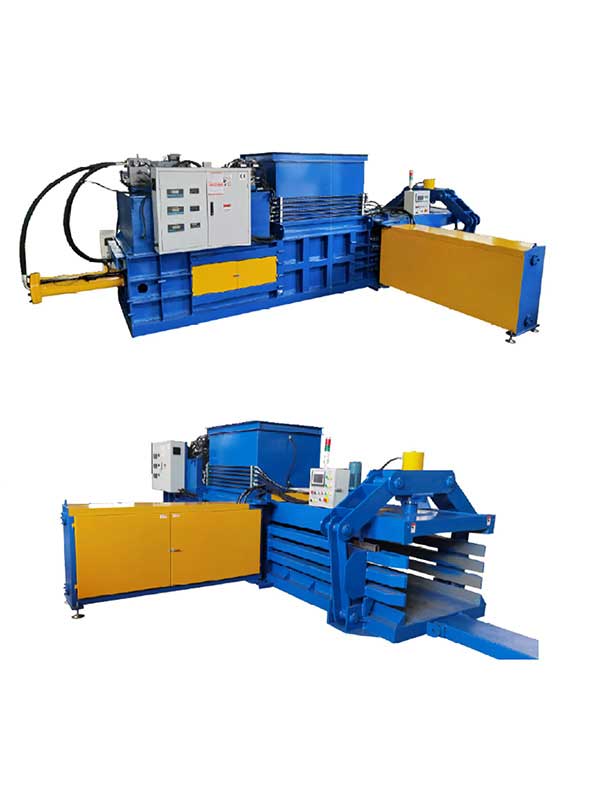

HBA60 Horizontal Hydraulic Baler
Features
- The screen will indicate the status to ensure monitoring the running conditions effectively.
- Automatic control model and interlock switch.
- Preset pressure and anti-overload protection.
- Smart control and self-check program.
- Separate emergency stop switch ensures stopping the machine at any time as necessary.
- Safe and effective quick-lock and quick-release devices
- High strength frame designed to ensure the durability of the machine.
- Separated cutting knives design to ensure stable working condition and long useage life.
Technical Parameters
| Model |
HBA-60 |
| Nominal Force |
600KN |
| Bale Size |
1100*750*500-1500MM |
| Feeding Door Size |
1500*1020MM |
| Motor Power |
22 KW |
| Capacity |
3-5 tons /hour |
| Tying Mode |
Automatic |
| Tying Wire |
4 * 3 mm wires |
| Size(L*W*H) |
8900*3850*3500MM |
| Weight |
9000kg |
HBA80 Horizontal Hydraulic Baler
Features
- The screen will indicate the status to ensure monitoring the running conditions effectively.
- Automatic control model and interlock switch.
- Preset pressure and anti-overload protection.
- Smart control and self-check program.
- Separate emergency stop switch ensures stopping the machine at any time as necessary.
- Safe and effective quick-lock and quick-release devices
- High strength frame designed to ensure the durability of the machine.
- Separated cutting knives design to ensure stable working condition and long useage life.
Technical Parameters
| Model |
HBA-80 |
| Nominal Force |
800KN |
| Bale Size |
1100*750*500-1500MM |
| Feeding Door Size |
1500*1020MM |
| Motor Power |
37 KW |
| Capacity |
4-7 tons /hour |
| Tying Mode |
Automatic |
| Tying Wire |
4 * 3 mm wires |
| Size(L*W*H) |
8900*3850*3500MM |
| Weight |
11500kg |

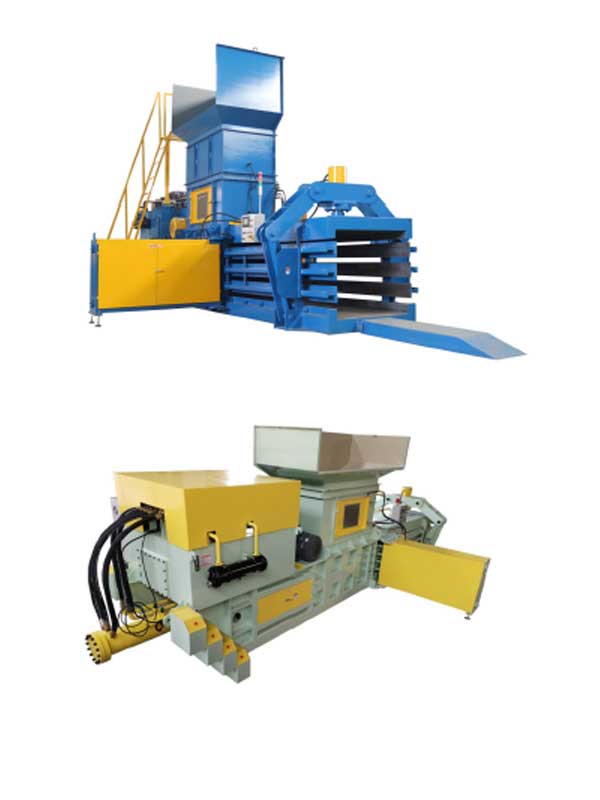

HBA100 Horizontal Hydraulic Baler
Features
- The screen will indicate the status to ensure monitoring the running conditions effectively.
- Automatic control model and interlock switch.
- Preset pressure and anti-overload protection.
- Smart control and self-check program.
- Separate emergency stop switch ensures stopping the machine at any time as necessary.
- Safe and effective quick-lock and quick-release devices
- High strength frame designed to ensure the durability of the machine.
- Separated cutting knives design to ensure stable working condition and long useage life.
Technical Parameters
| Model |
HBA-100 |
| Nominal Force |
1000KN |
| Bale Size |
1100*1100*500-1800MM |
| Feeding Door Size |
1800*1020MM |
| Motor Power |
45 KW |
| Capacity |
3-7 tons /hour |
| Tying Mode |
Automatic |
| Tying Wire |
5 * 3 mm wires |
| Size(L*W*H) |
10500*3950*4500MM |
| Weight |
18500kg |

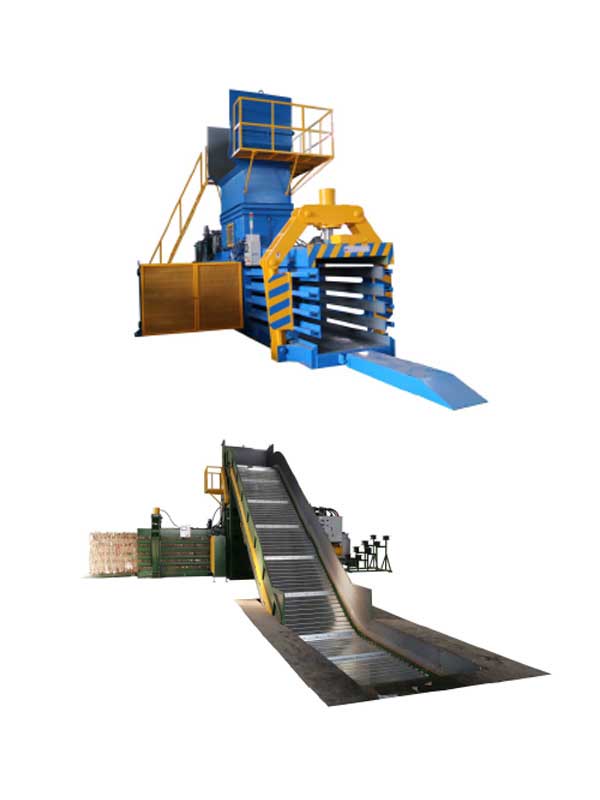

HBA120 Horizontal Hydraulic Baler
Features
- The screen will indicate the status to ensure monitoring the running conditions effectively.
- Automatic control model and interlock switch.
- Preset pressure and anti-overload protection.
- Smart control and self-check program.
- Separate emergency stop switch ensures stopping the machine at any time as necessary.
- Safe and effective quick-lock and quick-release devices
- High strength frame designed to ensure the durability of the machine.
- Separated cutting knives design to ensure stable working condition and long useage life.
Technical Parameters
| Model |
HBA-120 |
| Nominal Force |
1200KN |
| Bale Size |
1100*1250*500-1800MM |
| Feeding Door Size |
2100*1020MM |
| Motor Power |
55 KW |
| Capacity |
3-8 tons /hour |
| Tying Mode |
Automatic |
| Tying Wire |
5 * 3 mm wires |
| Size(L*W*H) |
11200*4150*4850MM |
| Weight |
20500kg |

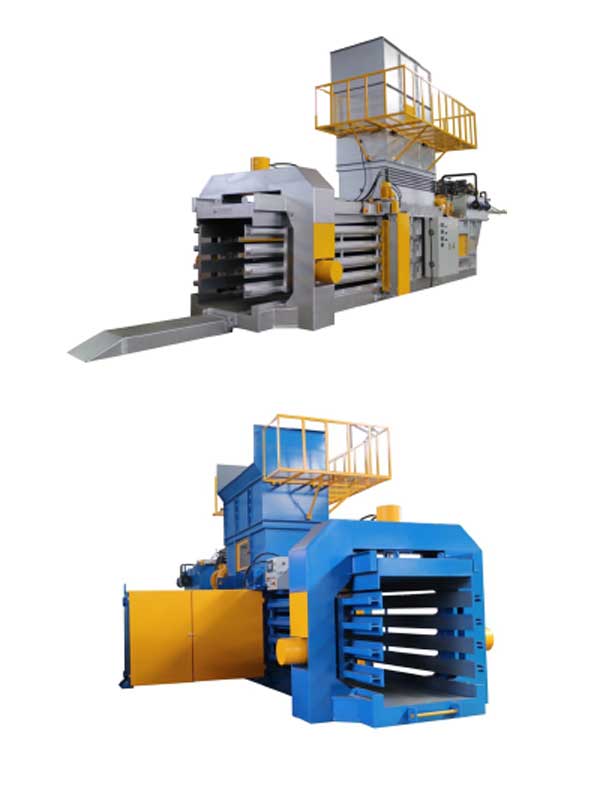

HBA150 Horizontal Hydraulic Baler
Features
- The screen will indicate the status to ensure monitoring the running conditions effectively.
- Automatic control model and interlock switch.
- Preset pressure and anti-overload protection.
- Smart control and self-check program.
- Separate emergency stop switch ensures stopping the machine at any time as necessary.
- Safe and effective quick-lock and quick-release devices
- High strength frame designed to ensure the durability of the machine.
- Separated cutting knives design to ensure stable working condition and long useage life.
Technical Parameters
| Model |
HBA-150 |
| Nominal Force |
1500KN |
| Bale Size |
1100*1250*500-1800MM |
| Feeding Door Size |
2400*1020MM |
| Motor Power |
45 KW |
| Capacity |
9-14 tons /hour |
| Tying Mode |
Automatic |
| Tying Wire |
5 * 3.2 mm wires |
| Size(L*W*H) |
12400*4010*4910MM |
| Weight |
26000kg |
